Description
Product Details

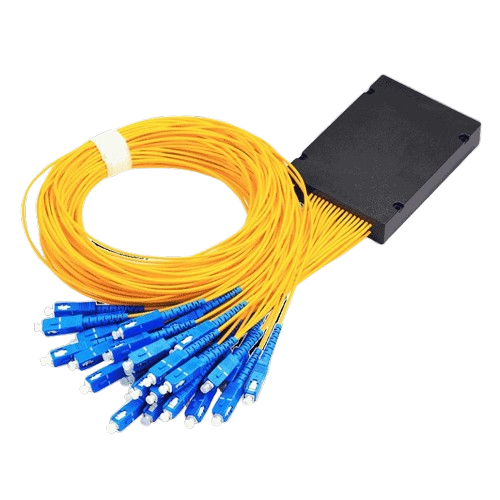

Maximize your network distribution efficiency with our premium 1x32 Planar Lightwave Circuit (PLC) Fiber Optic Splitter. This high-performance, passive optical component splits a single incoming optical signal evenly across 32 distinct output channels with pinpoint accuracy and zero power consumption. Factory-terminated with ultra-reliable SC/UPC (Ultra Physical Contact) connectors, this splitter guarantees exceptionally low insertion loss and high return loss, effectively preventing signal degradation and back-reflections.
Built using advanced silica glass waveguide circuits, it offers outstanding optical uniformity and environmental stability across a broad operating spectrum. It serves as the ultimate plug-and-play solution for internet service providers, telecom engineers, and network installers looking to build scalable, future-proof fiber infrastructure.
Key Features
- High-Precision 1x32 Splitting: Evenly divides one input beam into 32 outputs with a class-leading channel uniformity of ≤1.5 dB.
- Ultra-Low Insertion Loss: Achieves a highly efficient structural loss of ≤16.9 dB, ensuring maximum optical signal strength reaches every endpoint.
- Premium SC/UPC Connectors: Factory-polished blue SC/UPC connectors deliver a superior return loss of ≥50 dB for ultimate network stability.
- Broadband Spectrum Coverage: Fully operational from 1260 nm to 1650 nm, offering complete compatibility with 1310nm, 1490nm, and 1550nm systems.
- G.657.A1 Bend-Insensitive Fiber: Utilizing single-mode G.657.A1 fiber, allowing for tight bends and stress-free routing inside compact enclosures.
- Low Polarization Dependent Loss (PDL): Minimal PDL of ≤0.3 dB prevents signal fluctuation, preserving flawless data transmission.
- 100% Passive Design: Operates purely on light pathways without electricity, eliminating power dependencies and lowering maintenance overhead.
- Industrial-Grade Durability: Built to withstand harsh environments with an operational temperature tolerance ranging from -40°C to +85°C.
- Universal PON Compatibility: Fully optimized for seamless integration into GPON, EPON, FTTH, FTTX, and CATV network architectures.
