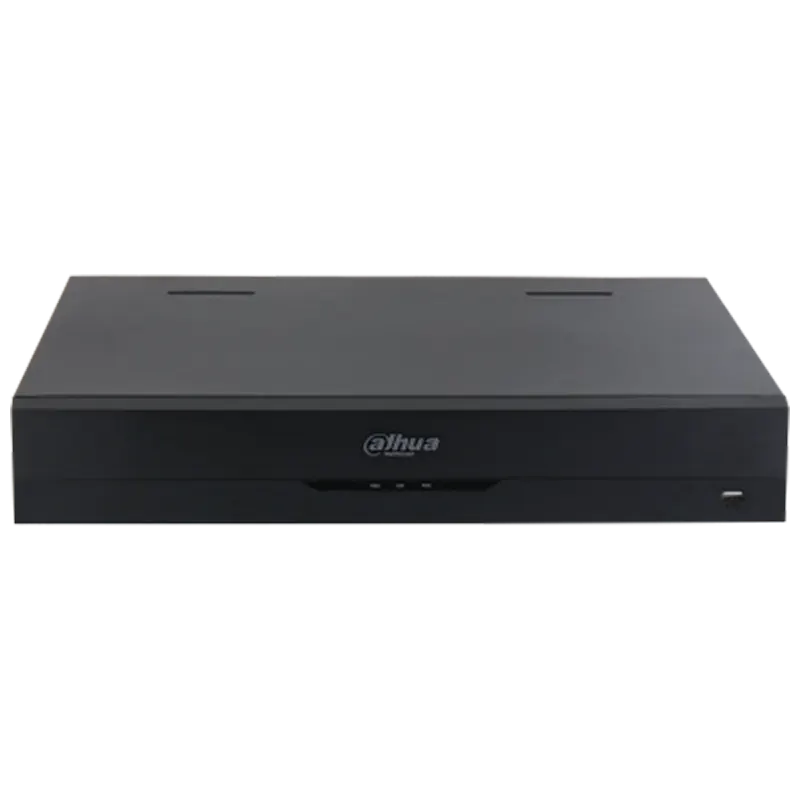

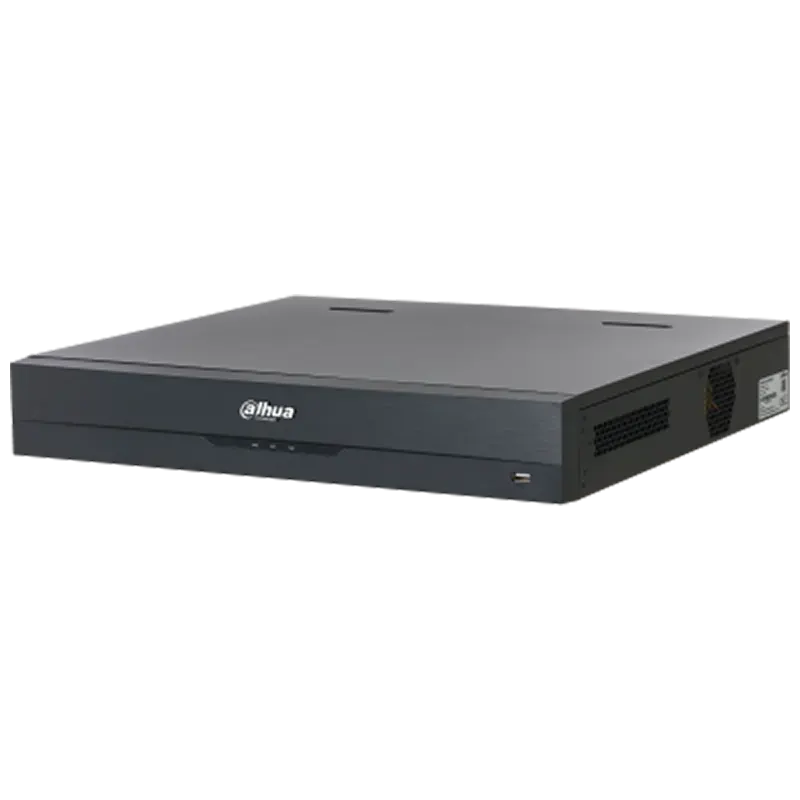

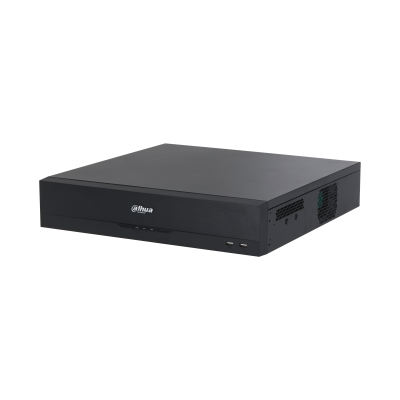

The Dahua DHI-NVR5864-E1 64-Channel WizSense Network Video Recorder (NVR) is an enterprise-class surveillance recorder built for large-scale IP video security systems. Supporting up to 64 IP camera channels with resolutions of up to 32MP, it provides intelligent AI-powered monitoring, high-capacity storage, and reliable video recording for commercial buildings, campuses, warehouses, industrial facilities, and critical infrastructure. It is designed to deliver exceptional performance in demanding security environments.
Powered by Dahua WizSense AI, the recorder supports advanced intelligent functions including face detection and recognition, perimeter protection, SMD Plus, and AcuPick technology for fast target searches. When used with compatible Dahua AI cameras, it also supports ANPR (Automatic Number Plate Recognition), video metadata, people counting, heat mapping, and other intelligent analytics to improve surveillance efficiency.
The NVR features 384Mbps incoming, recording, and outgoing bandwidth, 8 SATA drive bays supporting up to 20TB per hard drive, RAID 0/1/5/6/10, dual 4K HDMI outputs, dual VGA outputs, dual Gigabit Ethernet ports, and Smart H.265+/H.265 compression to maximize storage efficiency. Designed for continuous operation, the DHI-NVR5864-E1 offers a scalable and dependable recording platform for professional IP surveillance deployments.
Key Features
- 64 IP Camera Channels - Supports up to 64 network cameras with resolutions up to 32MP
- Dahua WizSense AI - Supports face recognition, face detection, perimeter protection, SMD Plus, and AcuPick
- 384Mbps Network Bandwidth - High-capacity incoming, recording, and outgoing throughput
- Smart H.265+/H.265 Compression - Reduces storage requirements while maintaining high image quality
- 8 SATA HDD Bays - Supports up to 20TB per hard drive for massive storage capacity
- RAID 0/1/5/6/10 Support - Enhances data protection and storage reliability

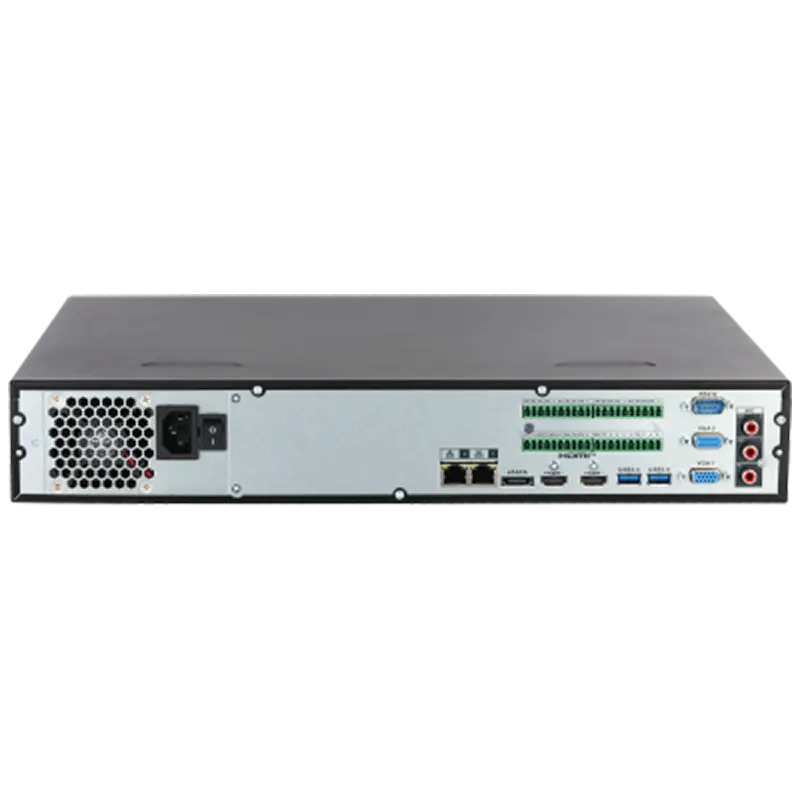

- Dual HDMI & Dual VGA Outputs - Supports 4K HDMI output and multi-monitor surveillance
- Dual Gigabit Ethernet Ports - High-speed network connectivity with redundancy options
- ONVIF Compatibility - Integrates with Dahua and compatible third-party IP cameras
- Rack-Mount Design - Ideal for enterprise security systems, data centres, and large commercial surveillance installations
