Description

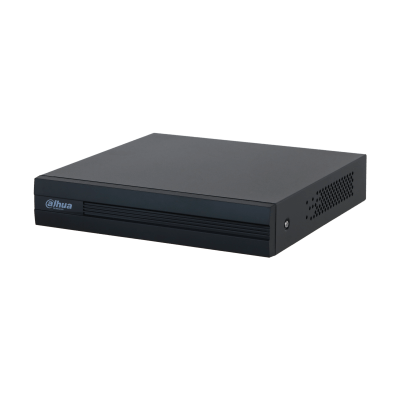

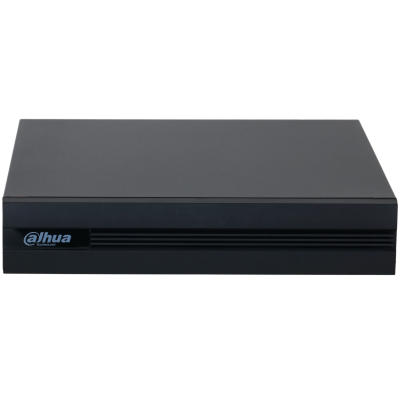

The Dahua XVR1B04 4-Channel 2MP Full HD XVR is a versatile digital video recorder designed for small to medium-sized surveillance systems. Supporting 4 BNC analog camera inputs and up to 5 IP camera channels (up to 2MP each), it provides flexible deployment for both new and existing CCTV installations. With Penta-brid technology, the recorder is compatible with HDCVI, AHD, TVI, CVBS, and IP cameras, making it an ideal upgrade solution without replacing existing cameras.

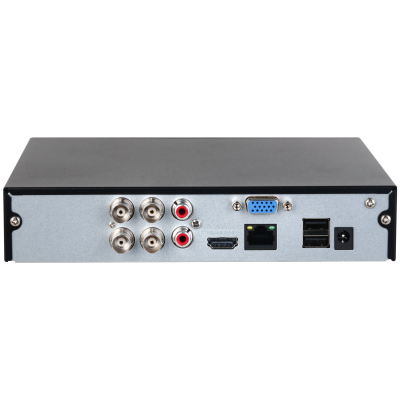

The recorder features HDMI and VGA video outputs with resolutions of up to 1080p, providing clear live viewing and playback on compatible monitors. It includes one SATA interface supporting a hard drive of up to 6TB (sold separately), offering ample storage for continuous video recording. Network connectivity is provided through a 10/100Mbps RJ45 Ethernet port, while two USB ports simplify backup, mouse connection, and firmware upgrades.
The XVR1B04 also supports two-way audio, allowing remote communication through compatible cameras and the DMSS mobile application. With intelligent video management, remote monitoring, and broad camera compatibility, it is an excellent solution for homes, offices, retail stores, warehouses, and small businesses.
Key Features
- 4-Channel DVR – Supports 4 BNC analog camera inputs
- Supports Up to 5 IP Cameras – Compatible with IP cameras up to 2MP resolution
- Penta-brid Compatibility – Works with HDCVI, AHD, TVI, CVBS, and IP cameras
- Full HD Display Output – HDMI and VGA outputs support up to 1080p
- 6TB Storage Capacity – 1 SATA interface supports up to 6TB HDD (sold separately)
- Two-Way Audio Support – Enables remote communication with compatible devices
- Audio Input & Output – 1-channel audio input and 1-channel audio output
- Network Connectivity – 1 × RJ45 LAN port for remote monitoring
- USB Connectivity – 2 × USB ports for backup, mouse, and firmware updates
- Remote Monitoring – Compatible with the DMSS mobile app for live view and playback
