Description

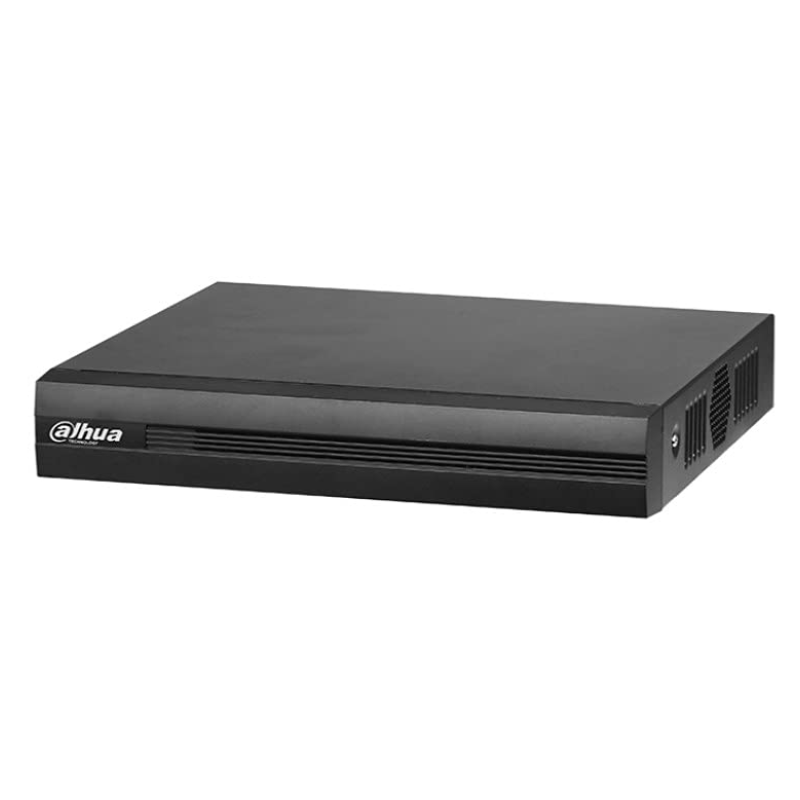

The Dahua XVR1B16 16-Channel Full HD XVR is a high-capacity digital video recorder designed for medium to large surveillance systems in commercial buildings, offices, schools, warehouses, retail stores, and residential estates. It supports 16 BNC analog camera inputs and up to 18 IP camera channels with resolutions of up to 6MP, making it an ideal hybrid recording solution for expanding CCTV installations. With Penta-brid technology, the recorder is compatible with HDCVI, AHD, TVI, CVBS, and IP cameras, allowing seamless integration with both legacy and modern surveillance systems.

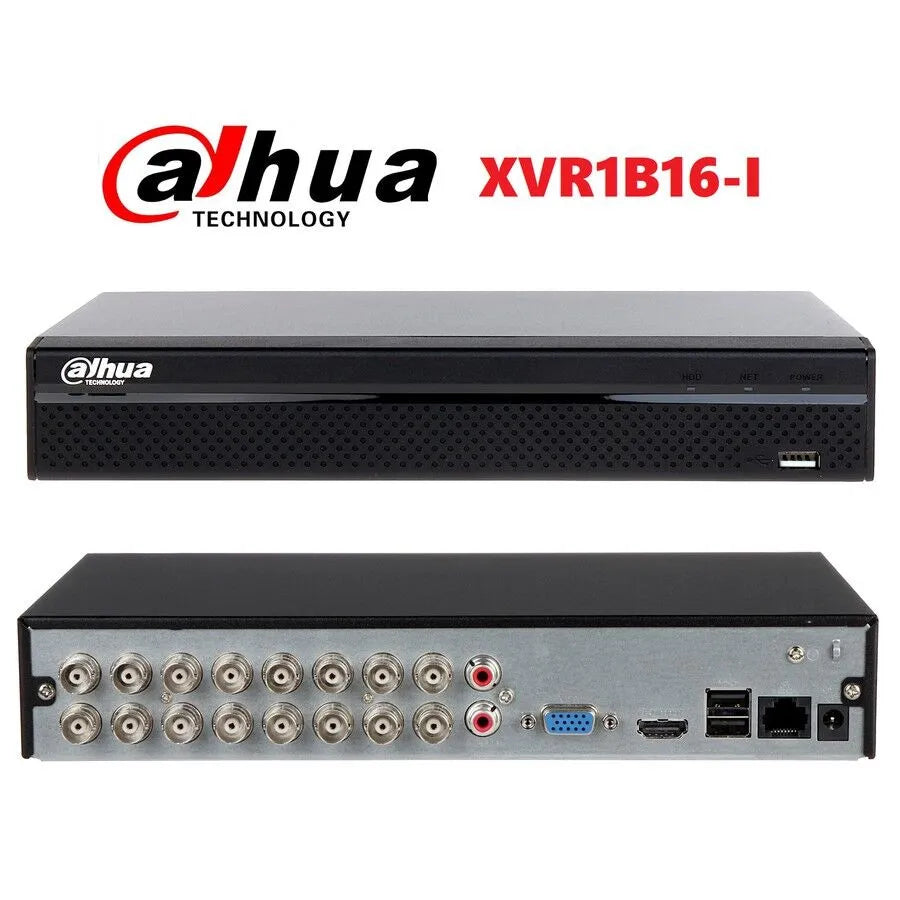

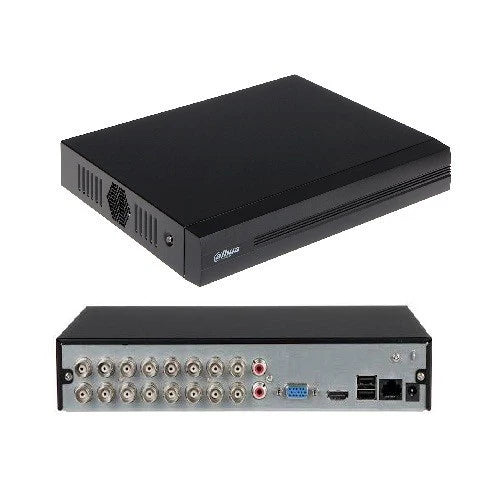

The recorder provides HDMI and VGA outputs supporting display resolutions of up to 1080p for clear live viewing and playback. It features one SATA interface supporting hard drives of up to 16TB (sold separately), offering substantial storage capacity for continuous recording. A 10/100Mbps RJ45 LAN port enables remote monitoring and management, while two USB ports simplify system backup, mouse connection, and firmware upgrades.
The XVR1B16 supports two-way audio with one audio input and one audio output, enabling remote communication through compatible cameras and the DMSS mobile application. Its advanced recording capabilities, broad camera compatibility, and flexible storage make it an excellent solution for professional surveillance deployments.
Key Features
- 16-Channel DVR – Supports 16 BNC analog camera inputs
- Supports Up to 18 IP Cameras – Compatible with IP cameras up to 6MP resolution
- Penta-brid Compatibility – Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- Full HD Display Output – HDMI and VGA outputs support up to 1080p
- 16TB Storage Capacity – 1 SATA interface supports up to 16TB HDD (sold separately)
- Two-Way Audio Support – Enables remote communication with compatible devices
- Audio Input & Output – 1-channel audio input and 1-channel audio output
- Network Connectivity – 1 × RJ45 LAN port for remote monitoring and management
- USB Connectivity – 2 × USB ports for backup, mouse, and firmware updates
- Remote Monitoring – Compatible with the DMSS mobile app for live viewing and playback
