Description

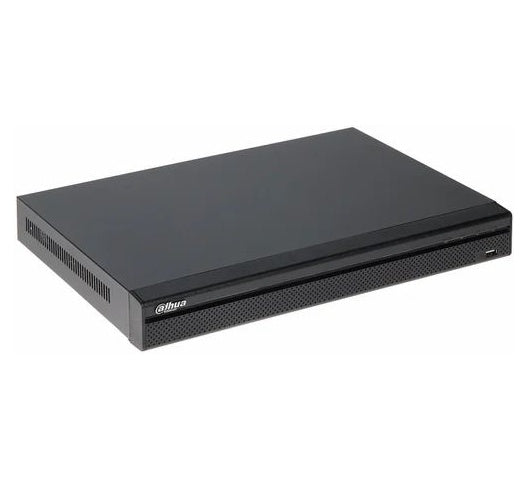

The Dahua XVR5116HS 16-Channel 5MP Penta-brid Digital Video Recorder (XVR) is a professional hybrid surveillance recorder designed for medium to large security installations in offices, retail stores, warehouses, schools, commercial buildings, and residential estates. It supports 16 BNC analog camera inputs and up to 24 IP camera channels with resolutions of up to 6MP, providing exceptional flexibility for expanding CCTV systems. Featuring Penta-brid technology, the recorder seamlessly supports HDCVI, AHD, TVI, CVBS, and IP cameras, allowing easy integration of both legacy and modern surveillance equipment.
The XVR5116HS delivers high-quality live viewing and playback through HDMI and VGA outputs, with HDMI supporting up to 4K display resolution for enhanced image clarity. It includes one SATA interface supporting hard drives of up to 16TB (sold separately), providing ample storage for continuous recording and long-term video retention. A 10/100Mbps RJ45 Ethernet port enables remote access and management via the DMSS mobile application, while two USB ports simplify backup, mouse connection, and firmware updates.
Supporting two-way audio with one audio input and one audio output, the recorder enables remote communication when paired with compatible cameras. Combining high-resolution recording, extensive IP camera expansion, and broad camera compatibility, the XVR5116HS is an ideal solution for demanding professional surveillance applications.
Key Features
- 16-Channel DVR – Supports 16 BNC analog camera inputs
- Supports Up to 24 IP Cameras – Compatible with IP cameras up to 6MP resolution
- 5MP Recording Support – Delivers high-quality recording for compatible analog cameras
- Penta-brid Compatibility – Supports HDCVI, AHD, TVI, CVBS, and IP cameras
- 4K HDMI Output – HDMI supports up to 4K display resolution, plus VGA output
- 16TB Storage Capacity – 1 SATA interface supports up to 16TB HDD (sold separately)
- Two-Way Audio Support – Enables remote communication with compatible devices
- Audio Input & Output – 1-channel audio input and 1-channel audio output
- Network Connectivity – 1 × RJ45 LAN port for remote monitoring and management
- USB Connectivity – 2 × USB ports for backup, mouse connection, and firmware updates
