Description

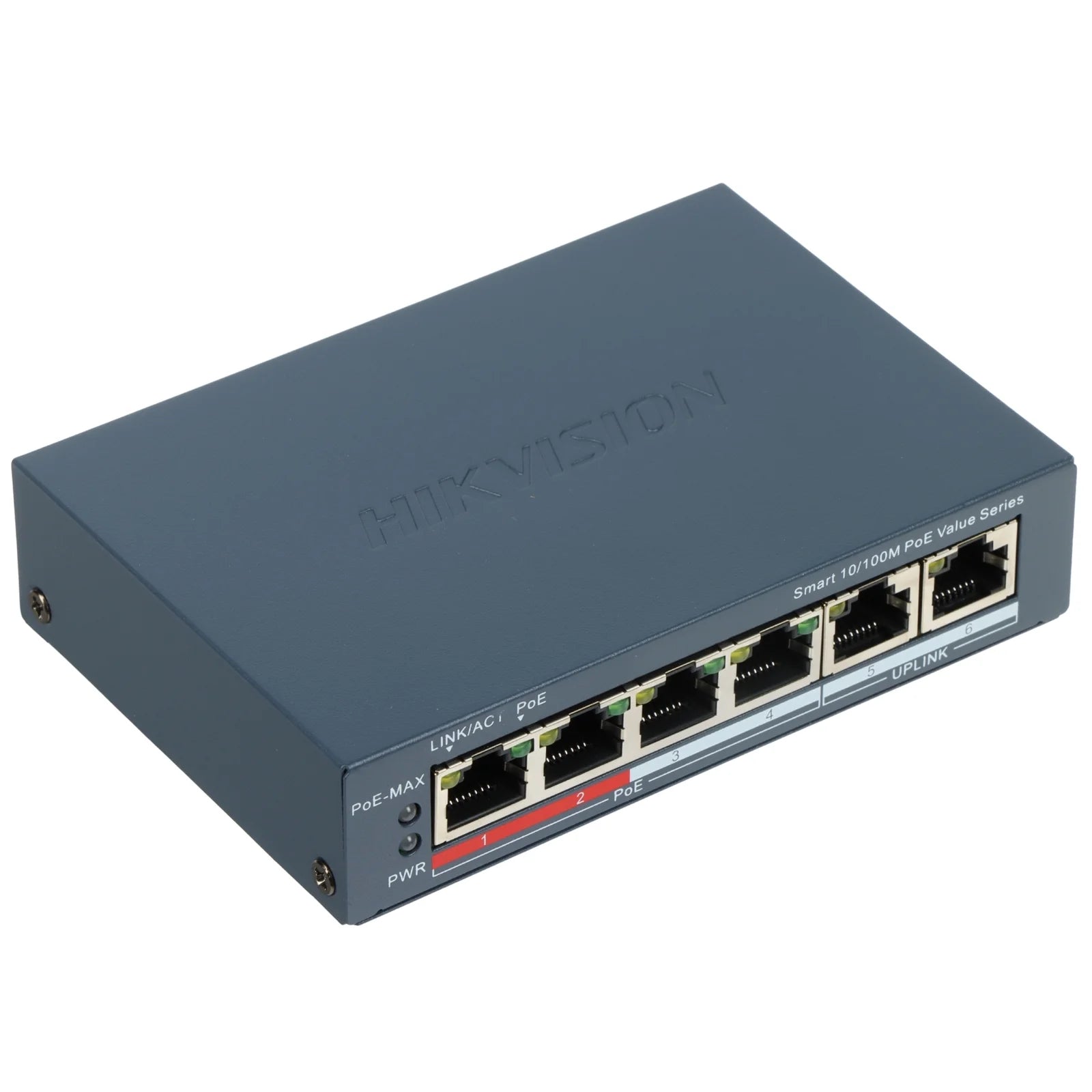

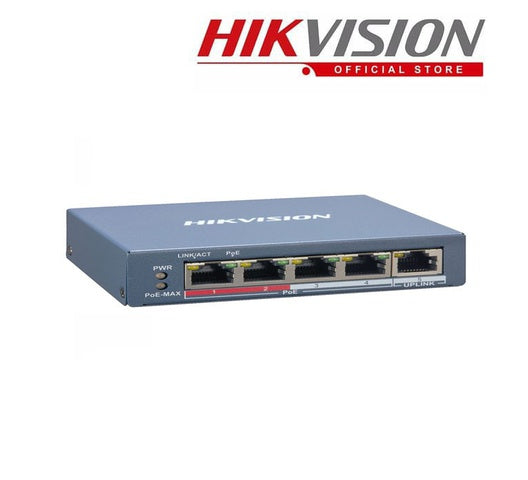

The Hikvision DS-3E1105P-EI/M(O-STD) is a Smart Managed Fast Ethernet PoE switch designed for IP surveillance, small business networks, and access control systems. It features 4 × 10/100Mbps PoE ports and 1 × 10/100Mbps RJ45 uplink port, providing reliable connectivity for IP cameras, wireless access points, VoIP devices, and other PoE-powered equipment. With a 45W total PoE power budget, it supports IEEE 802.3af/at standards, delivering both power and data over a single Ethernet cable.
The switch includes intelligent management features such as 802.1Q VLAN, PoE Watchdog for automatic camera recovery, STP/RSTP loop prevention, cable fault detection, and up to 300m long-range PoE transmission in Extend Mode. Built with a fan-free metal housing and 6kV surge protection, it offers reliable performance for offices, retail stores, schools, warehouses, and CCTV installations.
Key Features
- 4 × 10/100Mbps PoE Ethernet Ports
- 1 × 10/100Mbps RJ45 Uplink Port
- 45W Total PoE Power Budget
- IEEE 802.3af/at PoE Support
- Smart Managed Layer 2 Features
- 802.1Q VLAN Support
- PoE Watchdog for Automatic Camera Recovery
- Up to 300m Long-Range PoE Transmission
- STP/RSTP Loop Prevention & Cable Detection
- 6kV Surge Protection with Fan-Free Metal Housing
