Description

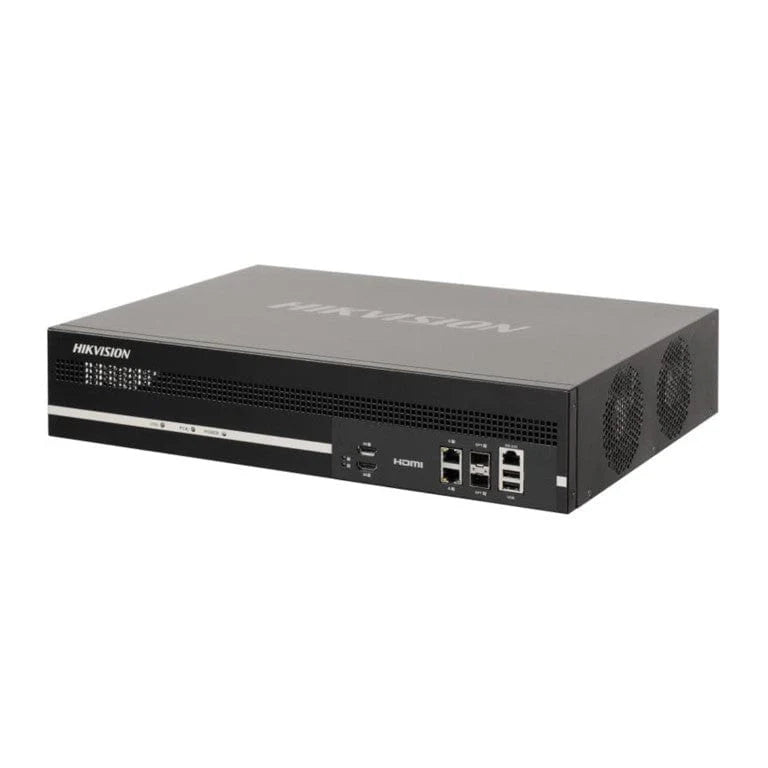

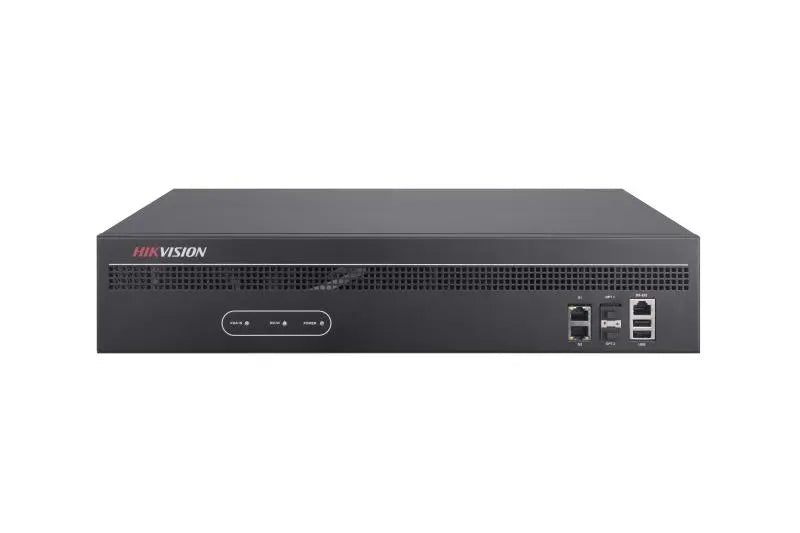

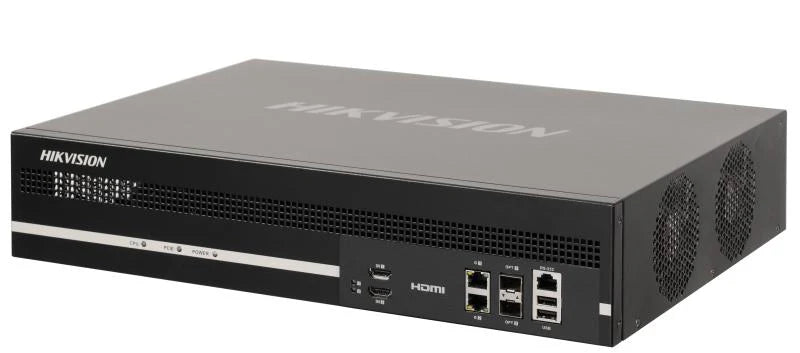

The Hikvision DS-6916UDI(C) 4K Ultra HD Video Decoder is a professional-grade decoding solution designed for large-scale surveillance control rooms, command centers, and video wall applications. Built on an embedded hardware platform, it delivers powerful multi-channel decoding and seamless video wall management for enterprise security deployments. It supports H.265, H.264, Smart265, Smart264, MJPEG, and HIK264 compression formats while decoding IP camera streams with resolutions up to 32 MP.
Equipped with 16 HDMI outputs, the decoder supports 4K Ultra HD (3840 × 2160 @ 30 Hz) video output and provides smooth, synchronized playback across multiple displays using frame synchronization technology. It can decode up to 256 video channels, including 128 channels of 2 MP video or 256 channels of 720p video simultaneously, making it ideal for demanding video wall environments.
The DS-6916UDI(C) features dual Gigabit Ethernet ports, dual optical ports, 2 USB 2.0 ports, RS-232, RS-485, and 8 alarm inputs and 8 alarm outputs for flexible system integration. It also supports split-screen display, scene switching, window roaming, controller cascading, and up to 64 video wall scenes, enabling efficient monitoring and management of complex surveillance systems.
Designed for continuous operation, the decoder is an ideal choice for airports, transportation hubs, smart cities, campuses, industrial facilities, and security operation centers requiring reliable, high-performance video decoding.
Key Features
- 16 HDMI Outputs – Supports 4K Ultra HD video wall displays
- 256 Video Decoding Channels – Simultaneously decodes up to 128 × 2MP or 256 × 720p streams
- Supports Up to 32 MP Camera Resolution – High-performance decoding for modern IP cameras
- 4K UHD Video Output – Up to 3840 × 2160 @ 30 Hz
- H.265/H.264/Smart265/Smart264/MJPEG/HIK264 Support – Wide codec compatibility
- Dual Gigabit RJ45 & Dual Optical Network Ports – High-speed, redundant connectivity
- Advanced Video Wall Management – Split-screen, roaming windows, scene switching, and controller cascading
- 8 Alarm Inputs & 8 Alarm Outputs – Integration with external security devices
- USB, RS-232 & RS-485 Interfaces – Flexible peripheral and control connectivity
- Ideal for Control Rooms & Security Operations Centers – Enterprise-grade decoding for large surveillance systems
