Description

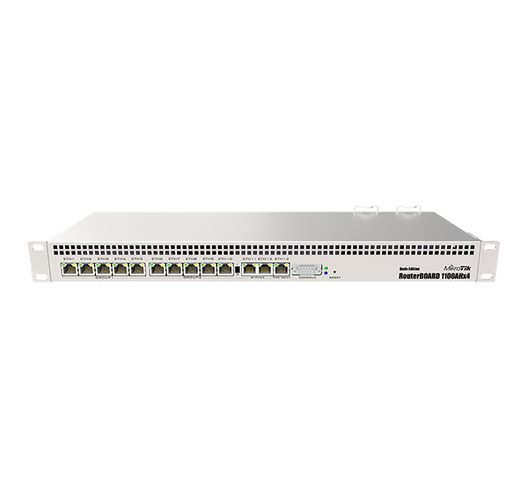

The MikroTik RB1100AHx4 Dude Edition (RB1100Dx4) is a powerful 1U rackmount enterprise router designed for ISPs, data centres, large business networks, and advanced network monitoring deployments. Powered by a quad-core 1.4GHz Annapurna Alpine AL21400 processor and 1GB RAM, it delivers high routing performance, with throughput of up to 7.5Gbps under MikroTik’s published test conditions.
The router features 13 Gigabit Ethernet ports, including an Ethernet bypass connection, enabling flexible network deployment and improved service continuity. It also supports hardware-accelerated IPsec, making it suitable for secure VPN connections and high-performance encrypted traffic.

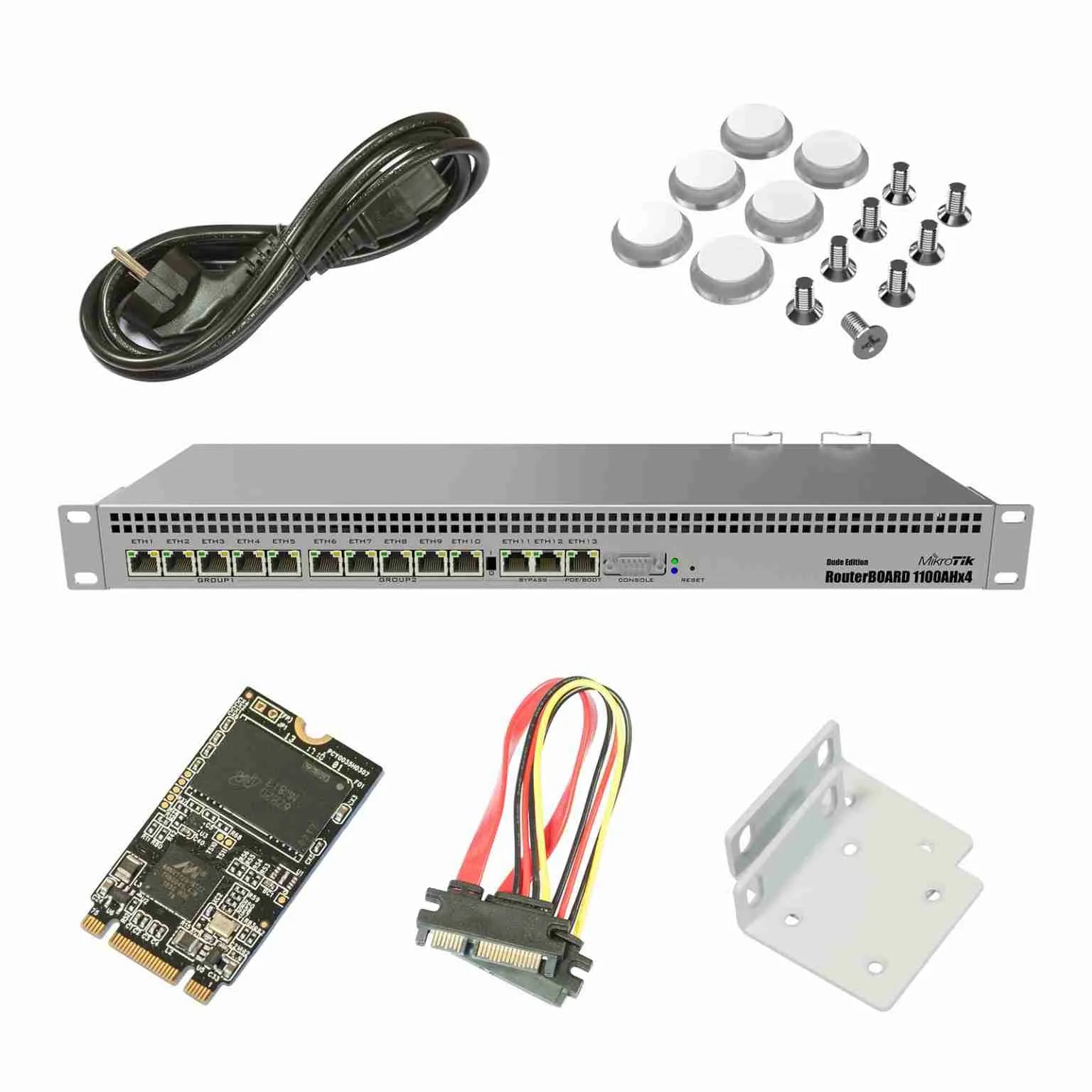

As the Dude Edition, it includes a pre-installed 60GB M.2 SSD for hosting the MikroTik The Dude network monitoring database, proxy caching, logs, and other storage-intensive services. Additional storage expansion is supported through two SATA ports, two M.2 slots, and a microSD card slot.

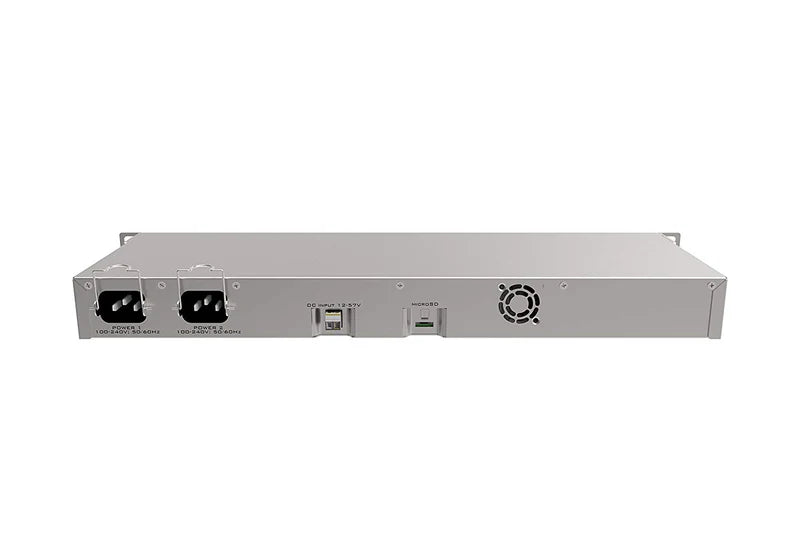

The RB1100AHx4 Dude Edition includes dual redundant AC power supplies, support for -48V telecom DC power, and 802.3af/at PoE input for dependable operation. Its passive cooling system provides silent, energy-efficient performance, while RouterOS Level 6 delivers advanced routing, firewall, VPN, VLAN, QoS, bandwidth management, hotspot, and network monitoring capabilities.
Key Features
- 13 × Gigabit Ethernet Ports
- Quad-Core 1.4GHz Annapurna Alpine AL21400 CPU
- 1GB RAM & 128MB NAND Storage
- 60GB M.2 SSD Pre-Installed
- Designed for MikroTik The Dude Network Monitoring
- Up to 7.5Gbps Maximum Throughput
- Hardware-Accelerated IPsec
- 2 × SATA3 Ports
- 2 × M.2 SATA-Compatible Slots
- microSD Card Expansion
- Dual Redundant AC Power Supplies
- -48V Telecom DC Power Support
- 802.3af/at PoE Input
- Passive, Fanless Cooling
- RouterOS Level 6 License
- 1U Rackmount Design
