Description

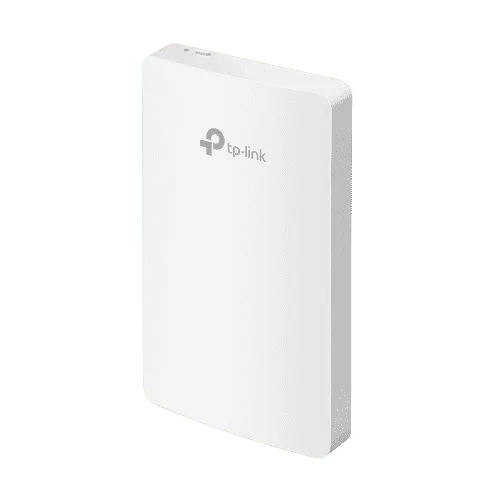

The TP-Link Omada EAP235-Wall AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point is an enterprise-grade wall-mounted access point designed to provide fast, reliable Wi-Fi connectivity in hotels, offices, apartments, dormitories, hospitals, and other multi-room environments. Powered by Wi-Fi 5 (IEEE 802.11ac Wave 2) technology, it delivers combined wireless speeds of up to 1,167Mbps, with 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, ensuring smooth streaming, VoIP, video conferencing, and business applications. It also features MU-MIMO technology for improved network efficiency when serving multiple devices simultaneously.

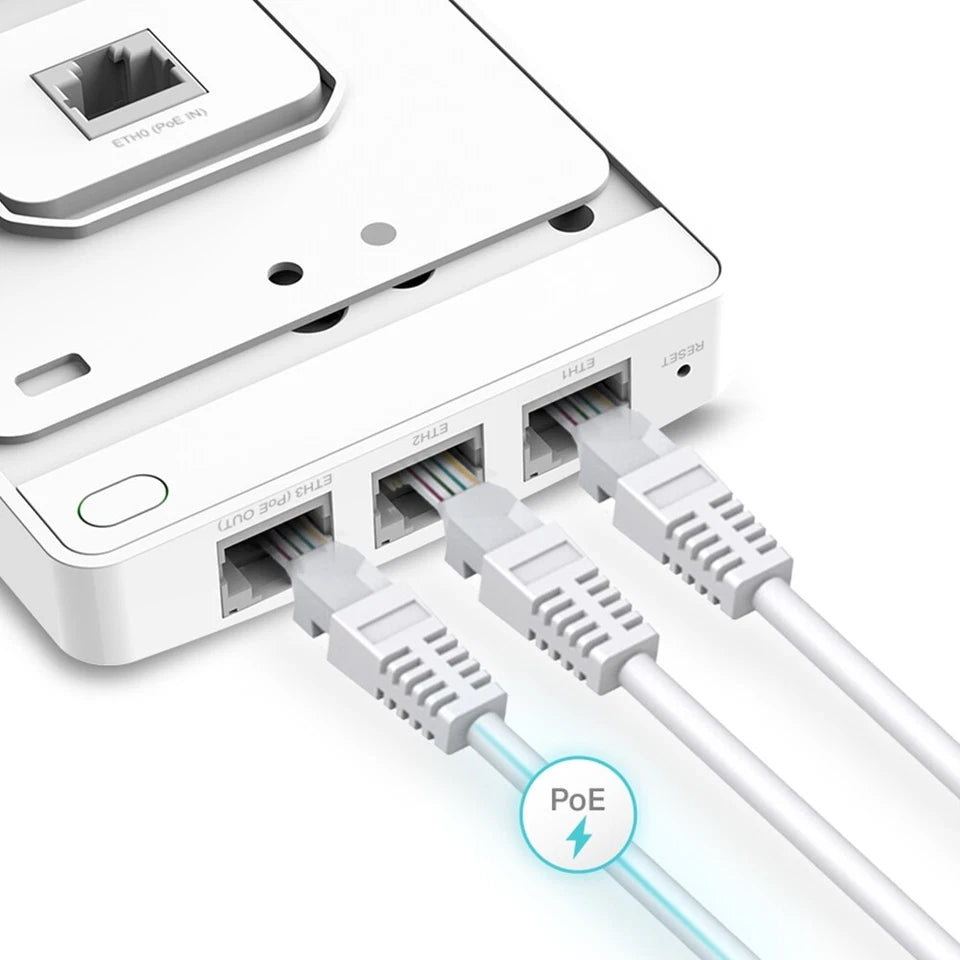

Designed to fit standard 86mm EU, US, and wall junction boxes, the EAP235-Wall offers a sleek, low-profile appearance that blends seamlessly into indoor environments. It includes one Gigabit uplink port and three Gigabit downlink ports, with one downlink port supporting PoE pass-through (when powered by 802.3at PoE+) to power compatible IP phones or other PoE devices. The access point supports both 802.3af/at PoE for simple installation using a single Ethernet cable for power and data.
As part of the TP-Link Omada SDN platform, the EAP235-Wall supports centralized cloud management via the Omada Software Controller, Hardware Controller, or Cloud-Based Controller. Enterprise features including Captive Portal, Band Steering, Beamforming, Load Balancing, Multiple SSIDs, VLAN, QoS, and advanced wireless security make it an ideal solution for professional hospitality and business wireless deployments.
Key Features
- AC1200 Dual Band Wi-Fi – Combined wireless speeds of up to 1,167Mbps (300Mbps at 2.4GHz + 867Mbps at 5GHz)
- Wi-Fi 5 (802.11ac Wave 2) – Fast, reliable wireless networking for business environments
- MU-MIMO Technology – Improves network efficiency by serving multiple devices simultaneously
- 4 Gigabit Ethernet Ports – 1 uplink and 3 downlink Gigabit ports for wired connectivity
- PoE Pass-Through – One downlink port supports PoE Out (requires 802.3at PoE+ input)
- 802.3af/at PoE Support – Simplifies installation with power and data over a single Ethernet cable
- Wall Plate Design – Fits standard 86mm EU, US, and wall junction boxes for discreet installation
- Omada SDN Compatible – Centralized cloud and local management for enterprise deployments

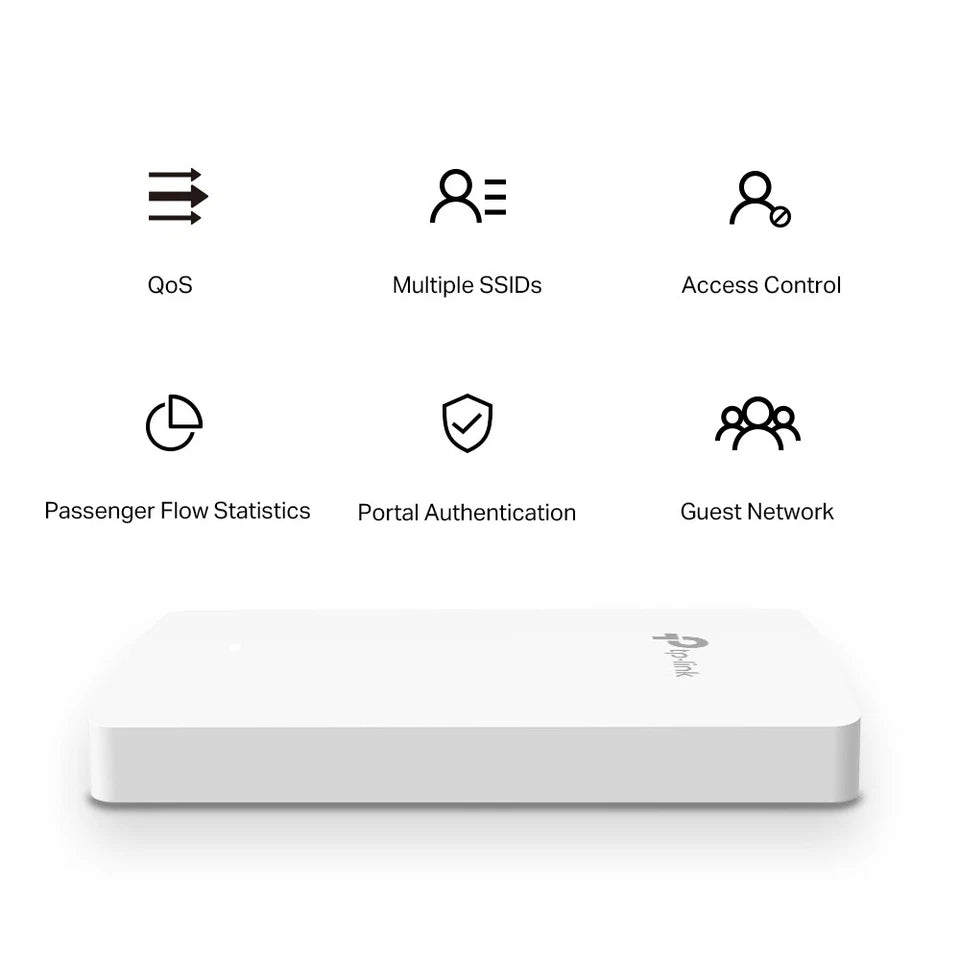

- Captive Portal, Beamforming & Band Steering – Enhances guest access, wireless coverage, and performance
- Ideal for Hospitality & Business – Perfect for hotels, apartments, dormitories, hospitals, offices, and classrooms
